TR-22 Transmission and Control Mechanism - Clutch

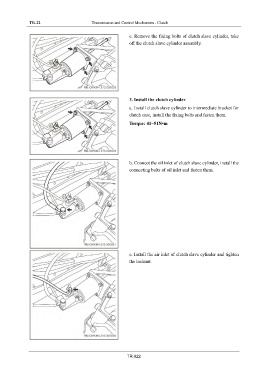

e. Remove the fixing bolts of clutch slave cylinder, take
off the clutch slave cylinder assembly.

3. Install the clutch cylinder
a. Install clutch slave cylinder to intermediate bracket for
clutch case, install the fixing bolts and fasten them.
Torque: 41~51N•m

b. Connect the oil inlet of clutch slave cylinder, install the
connecting bolts of oil inlet and fasten them.

c. Install the air inlet of clutch slave cylinder and tighten
the locknut.

TR-022
