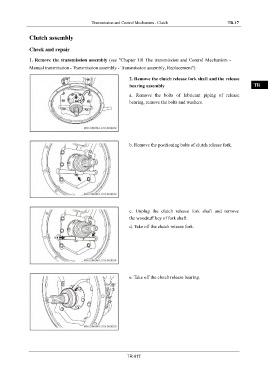

Transmission and Control Mechanism - Clutch TR-17
Clutch assembly IN
Check and repair DI
Remove the transmission assembly (see "Chapter TR The transmission and Control Mechanism -
Manual transmission - Transmission assembly - Transmission assembly, Replacement") EG
2. Remove the clutch release fork shaft and the release
bearing assembly TR
a. Remove the bolts of lubricant piping of release
bearing, remove the bolts and washers. AX
FR
ST
b. Remove the positioning bolts of clutch release fork.
BR
BW
EL
c. Unplug the clutch release fork shaft and remove
the woodruff key of fork shaft.
d. Take off the clutch release fork.
e. Take off the clutch release bearing.
TR-017
