Page 1096 - Foton Workshop Manual - Tunland (AT)

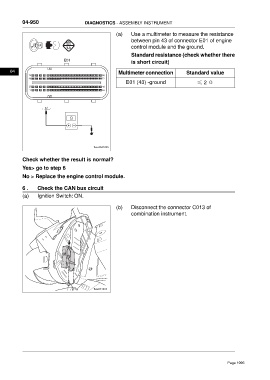

P. 1096
04-950 DIAGNOSTICS - ASSEMBLY INSTRUMENT
(a) Use a multimeter to measure the resistance
between pin 43 of connector E01 of engine
control module and the ground.
Standard resistance (check whether there
E01
is short circuit)
04 Multimeter connection Standard value
73 96
49 72
E01 (43) -ground ≤ 2 Ω
25 48
1 24
52
ftwxd041295
Check whether the result is normal?
Yes> go to step 6
No > Replace the engine control module.
6 . Check the CAN bus circuit
(a) Ignition Switch: ON.
(b) Disconnect the connector C013 of
combination instrument.
ftwx831083
Page 1096
