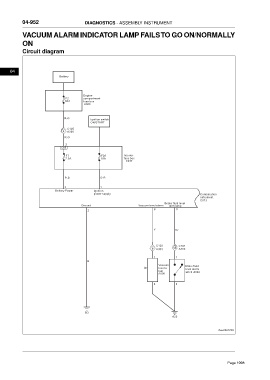

04-952 DIAGNOSTICS - ASSEMBLY INSTRUMENT
VACUUM ALARM INDICATOR LAMP FAILS TO GO ON/NORMALLY
ON
Circuit diagram
04
Battery
Engine
F2 compartment
60A fuse box
A020
R-G Ignition switch
ON/START
C105
4 A306
R-G
2
C65
F7 F26 Interior
7.5A 10A fuse box
C037
P-B O-R
3 1
Battery Power Ignition
power supply Combination
nstrument
C013
Brake fluid level
Ground Vacuum level alarm larm lamp
2 9 8
Y Gr
C102 C101
9 A303 33 A302
1 1
B
Vacuum Brake fluid
lar level a level alarm
lam witch A009
A008
2 2
B3
A25
ftwxd041298
