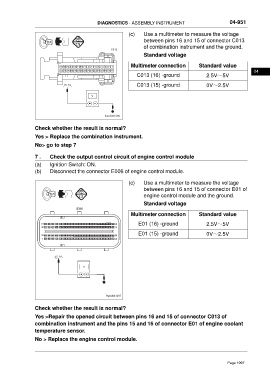

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-951

(c) Use a multimeter to measure the voltage
between pins 16 and 15 of connector C013
of combination instrument and the ground.
C013
Standard voltage

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Multimeter connection Standard value
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 04
C013 (16) -ground 2.5V～5V

15 16 C013 (15) -ground 0V～2.5V

ftwxd041296

Check whether the result is normal?
Yes > Replace the combination instrument.
No> go to step 7

7 . Check the output control circuit of engine control module
(a) Ignition Switch: ON.
(b) Disconnect the connector E006 of engine control module.

(c) Use a multimeter to measure the voltage
between pins 16 and 15 of connector E01 of
ON
engine control module and the ground.
Standard voltage
E01
Multimeter connection Standard value

73 96 E01 (16) -ground 2.5V～5V
49 72
E01 (15) -ground 0V～2.5V
25 48
1 24

15 16

ftwxd041297

Check whether the result is normal?

Yes >Repair the opened circuit between pins 16 and 15 of connector C013 of
combination instrument and the pins 15 and 16 of connector E01 of engine coolant
temperature sensor.
No > Replace the engine control module.
