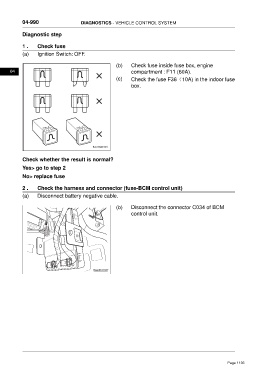

Page 1136 - Foton Workshop Manual - Tunland (AT)
P. 1136
04-990 DIAGNOSTICS - VEHICLE CONTROL SYSTEM
Diagnostic step
1 . Check fuse
(a) Ignition Switch: OFF.
(b) Check fuse inside fuse box, engine
04 compartment : F11 (60A).
(c) Check the fuse F36（10A) in the indoor fuse
box.
Check whether the result is normal?
Yes> go to step 2
No> replace fuse
2 . Check the harness and connector (fuse-BCM control unit)
(a) Disconnect battery negative cable.
(b) Disconnect the connector C034 of BCM
control unit.
ftwxd041027
