P. 1132

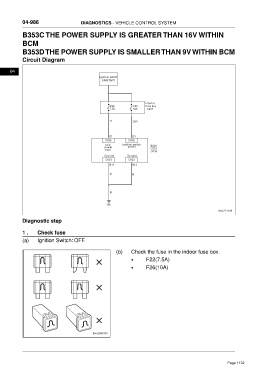

04-986 DIAGNOSTICS - VEHICLE CONTROL SYSTEM
B353C THE POWER SUPPLY IS GREATER THAN 16V WITHIN
BCM
B353D THE POWER SUPPLY IS SMALLER THAN 9V WITHIN BCM
Circuit Diagram
04
Ignition switch
ON/START
Interior
F22 F26 fuse box
7.5A 10A C037
R O-R
E1 E3
C036 C036
ACC Ignition switch BCM
power power
input C033
C036
Ground Ground
C033 C033
B11 B12
B B
B
B6
ftwx711149
Diagnostic step
1 . Check fuse
(a) Ignition Switch: OFF.
(b) Check the fuse in the indoor fuse box.
• F22(7.5A)
• F26(10A)
