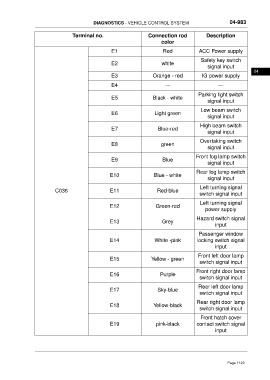

DIAGNOSTICS - VEHICLE CONTROL SYSTEM 04-983

Terminal no. Connection rod Description
color

E1 Red ACC Power supply
Safety key switch
E2 white
signal input
04
E3 Orange - red IG power supply

E4 — —
Parking light switch
E5 Black - white
signal input
Low beam switch
E6 Light green
signal input

High beam switch
E7 Blue-red
signal input
Overtaking switch
E8 green
signal input

Front fog lamp switch
E9 Blue
signal input
Rear fog lamp switch
E10 Blue - white
signal input
Left turning signal
C036 E11 Red-blue
switch signal input

Left turning signal
E12 Green-red
power supply
Hazard switch signal
E13 Grey
input

Passenger window
E14 White -pink locking switch signal
input

Front left door lamp
E15 Yellow - green
switch signal input
Front right door lamp
E16 Purple
switch signal input
Rear left door lamp
E17 Sky-blue
switch signal input

Rear right door lamp
E18 Yellow-black
switch signal input
Front hatch cover
E19 pink-black contact switch signal
input
