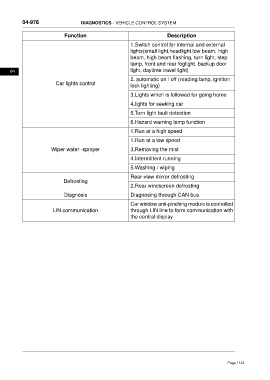

Page 1124 - Foton Workshop Manual - Tunland (AT)

04-978 DIAGNOSTICS - VEHICLE CONTROL SYSTEM

Function Description
1.Switch control for internal and external
lights(small light,headlight low beam, high
beam, high beam flashing, turn light, step
lamp, front and rear foglight, backup door
04 light, daytime travel light)
2. automatic on / off (reading lamp, ignition
Car lights control
lock lighting)
3.Lights which is followed for going home

4.lights for seeking car
5.Turn light fault detection

6.Hazard warning lamp function
1.Run at a high speed

1.Run at a low speed

Wiper water -sprayer 3.Removing the mist
4.Intermittent running

5.Washing / wiping
Rear-view mirror defrosting
Defrosting
2.Rear windscreen defrosting
Diagnosis Diagnosing through CAN bus

Car window anti-pinching module is controlled
LIN communication through LIN line to form communication with
the central display
