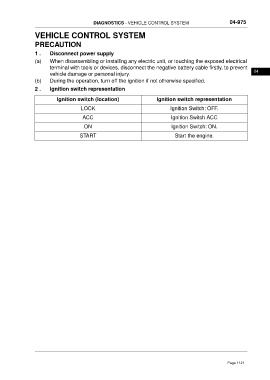

DIAGNOSTICS - VEHICLE CONTROL SYSTEM 04-975
VEHICLE CONTROL SYSTEM
PRECAUTION
1 . Disconnect power supply
(a) When disassembling or installing any electric unit, or touching the exposed electrical
terminal with tools or devices, disconnect the negative battery cable firstly, to prevent
04
vehicle damage or personal injury.
(b) During the operation, turn off the ignition if not otherwise specified.
2 . Ignition switch representation
Ignition switch (location) Ignition switch representation
LOCK Ignition Switch: OFF.
ACC Ignition Switch ACC
ON Ignition Switch: ON.
START Start the engine.
