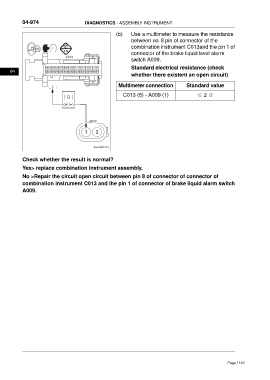

04-974 DIAGNOSTICS - ASSEMBLY INSTRUMENT

(b) Use a multimeter to measure the resistance
between no. 8 pin of connector of the
combination instrument C013and the pin 1 of
connector of the brake liquid level alarm
C013
switch A009.
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Standard electrical resistance (check
04 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
whether there existent an open circuit)

8 Multimeter connection Standard value
C013 (8) - A009 (1) ≤ 2 Ω

A009
1 2

ftwxd041314

Check whether the result is normal?

Yes> replace combination instrument assembly.
No >Repair the circuit open circuit between pin 8 of connector of connector of
combination instrument C013 and the pin 1 of connector of brake liquid alarm switch
A009.
