DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-969
BRAKE FAULT ALARM LAMP FAILS TO GO ON/NORMALLY ON

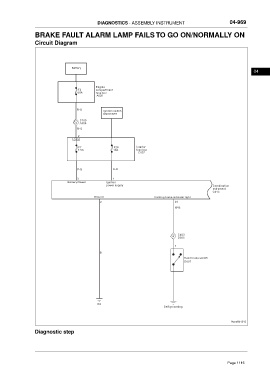

Circuit Diagram
Battery
04
Engine
F2 compartment
60A fuse box
A020
R-G Ignition switch
ON/START
C105
4 A306
R-G
2
C65
F7 F26 Interior
7.5A 10A fuse box
C037
P-B O-R
3 1
Battery Power Ignition
power supply Combination
nstrument
C013
Ground Parking brake indicator light
2 29
W-B
C403
4 D305
1
B
Hand brake switch
D007
B3
Self grounding
ftwxd041312
