P. 1110

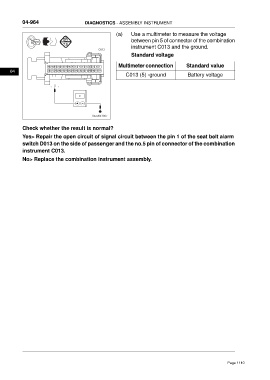

04-964 DIAGNOSTICS - ASSEMBLY INSTRUMENT
(a) Use a multimeter to measure the voltage
between pin 5 of connector of the combination
instrument C013 and the ground.
C013
Standard voltage
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Multimeter connection Standard value
04 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
C013 (5) -ground Battery voltage
5
ftwxd041307
Check whether the result is normal?
Yes> Repair the open circuit of signal circuit between the pin 1 of the seat belt alarm
switch D013 on the side of passenger and the no.5 pin of connector of the combination
instrument C013.
No> Replace the combination instrument assembly.
