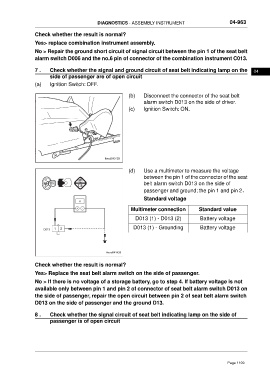

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-963

Check whether the result is normal?

Yes> replace combination instrument assembly.
No > Repair the ground short circuit of signal circuit between the pin 1 of the seat belt
alarm switch D006 and the no.6 pin of connector of the combination instrument C013.

7 . Check whether the signal and ground circuit of seat belt indicating lamp on the 04
side of passenger are of open circuit
(a) Ignition Switch: OFF.

(b) Disconnect the connector of the seat belt
alarm switch D013 on the side of driver.
(c) Ignition Switch: ON.

(d) Use a multimeter to measure the voltage
between the pin 1 of the connector of the seat
belt alarm switch D013 on the side of
passenger and ground; the pin 1 and pin 2。

Standard voltage

Multimeter connection Standard value
D013 (1) - D013 (2) Battery voltage

D013 D013 (1) - Grounding Battery voltage

ftwxd041428

Check whether the result is normal?

Yes> Replace the seat belt alarm switch on the side of passenger.
No > If there is no voltage of a storage battery, go to step 4. If battery voltage is not
available only between pin 1 and pin 2 of connector of seat belt alarm switch D013 on
the side of passenger, repair the open circuit between pin 2 of seat belt alarm switch
D013 on the side of passenger and the ground D13.

8 . Check whether the signal circuit of seat belt indicating lamp on the side of
passenger is of open circuit
