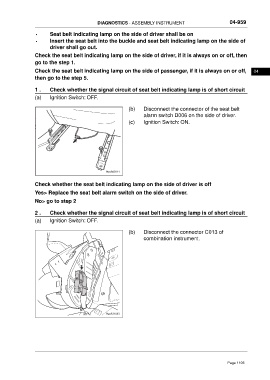

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-959

• Seat belt indicating lamp on the side of driver shall be on
• Insert the seat belt into the buckle and seat belt indicating lamp on the side of
driver shall go out.
Check the seat belt indicating lamp on the side of driver, if it is always on or off, then
go to the step 1.

Check the seat belt indicating lamp on the side of passenger, if it is always on or off, 04
then go to the step 5.

1 . Check whether the signal circuit of seat belt indicating lamp is of short circuit
(a) Ignition Switch: OFF.

(b) Disconnect the connector of the seat belt
alarm switch D006 on the side of driver.
(c) Ignition Switch: ON.

Check whether the seat belt indicating lamp on the side of driver is off
Yes> Replace the seat belt alarm switch on the side of driver.
No> go to step 2

2 . Check whether the signal circuit of seat belt indicating lamp is of short circuit
(a) Ignition Switch: OFF.

(b) Disconnect the connector C013 of
combination instrument.

ftwx831083
