04-958 DIAGNOSTICS - ASSEMBLY INSTRUMENT

SEAT BELT INDICATING LAMP IS NOT ON/ALWAYS ON

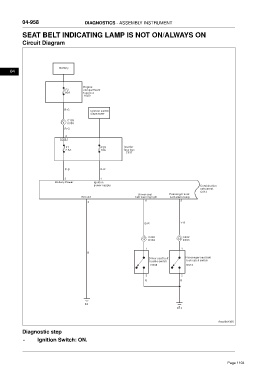

Circuit Diagram

Battery
04

Engine
F2 compartment
60A fuse box
A020

R-G Ignition switch
ON/START
C105
4 A306
R-G
2
C65
F7 F26 Interior
7.5A 10A fuse box
C037

P-B O-R

3 1
Battery Power Ignition
power supply Combination
nstrument
C013
Driver seat Passenger seat
Ground belt warning light belt alarm lamp
2 6 5

B-R Y-B

C402 C402
14 D304 34 D303

1 1
B
Driver seat belt Passenger seat belt
buckle switch lock catch switch
D006 D013

2 2
B B

B3
D13

ftwxd041305

Diagnostic step

• Ignition Switch: ON.
