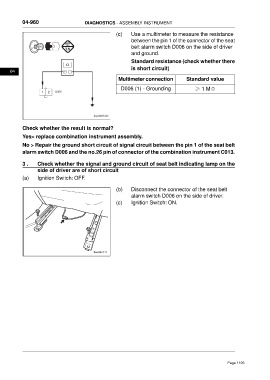

04-960 DIAGNOSTICS - ASSEMBLY INSTRUMENT

(c) Use a multimeter to measure the resistance
between the pin 1 of the connector of the seat
belt alarm switch D006 on the side of driver
and ground.

Standard resistance (check whether there
is short circuit)
04
Multimeter connection Standard value
D006 (1) - Grounding ≥ 1 MΩ
D006

ftwxd041425

Check whether the result is normal?
Yes> replace combination instrument assembly.
No > Repair the ground short circuit of signal circuit between the pin 1 of the seat belt
alarm switch D006 and the no.26 pin of connector of the combination instrument C013.

3 . Check whether the signal and ground circuit of seat belt indicating lamp on the
side of driver are of short circuit
(a) Ignition Switch: OFF.

(b) Disconnect the connector of the seat belt
alarm switch D006 on the side of driver.
(c) Ignition Switch: ON.
