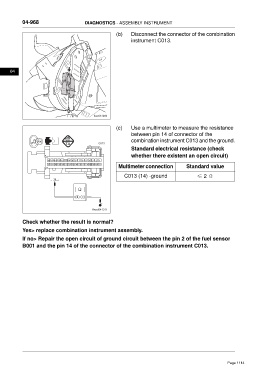

04-968 DIAGNOSTICS - ASSEMBLY INSTRUMENT

(b) Disconnect the connector of the combination
instrument C013.

04

ftwx831083

(c) Use a multimeter to measure the resistance
between pin 14 of connector of the
combination instrument C013 and the ground.
C013
Standard electrical resistance (check
whether there existent an open circuit)
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
Multimeter connection Standard value
C013 (14) -ground ≤ 2 Ω
14

ftwxd041311

Check whether the result is normal?
Yes> replace combination instrument assembly.

If no> Repair the open circuit of ground circuit between the pin 2 of the fuel sensor
B001 and the pin 14 of the connector of the combination instrument C013.
