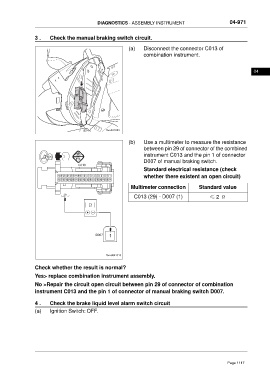

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-971
3 . Check the manual braking switch circuit.
(a) Disconnect the connector C013 of
combination instrument.
04
ftwx831083
(b) Use a multimeter to measure the resistance
between pin 29 of connector of the combined
instrument C013 and the pin 1 of connector
D007 of manual braking switch.
C013
Standard electrical resistance (check
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 whether there existent an open circuit)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
Multimeter connection Standard value
29
C013 (29) - D007 (1) ≤ 2 Ω
D007
ftwxd041313
Check whether the result is normal?
Yes> replace combination instrument assembly.
No >Repair the circuit open circuit between pin 29 of connector of combination
instrument C013 and the pin 1 of connector of manual braking switch D007.
4 . Check the brake liquid level alarm switch circuit
(a) Ignition Switch: OFF.
