P. 1125

DIAGNOSTICS - VEHICLE CONTROL SYSTEM                          04-979

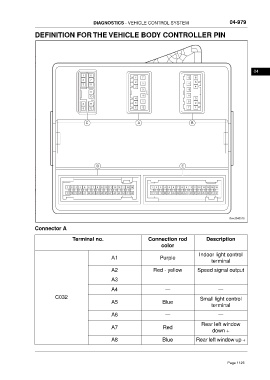

                 DEFINITION FOR THE VEHICLE BODY CONTROLLER PIN









                                                                                                                     04










































                 Connector A

                                  Terminal no.                      Connection rod             Description
                                                                          color
                                                                                           Indoor light control
                                                    A1                    Purple
                                                                                                 terminal

                                                    A2                 Red - yellow        Speed signal output
                                                    A3                      —                       —

                                                    A4                      —                       —
                          C032                                                              Small light control
                                                    A5                     Blue
                                                                                                 terminal
                                                    A6                      —                       —

                                                                                            Rear left window
                                                    A7                     Red
                                                                                                 down +
                                                    A8                     Blue           Rear left window up +
