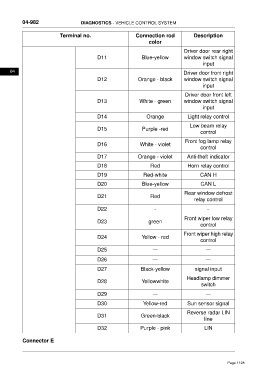

04-982 DIAGNOSTICS - VEHICLE CONTROL SYSTEM

Terminal no. Connection rod Description
color

Driver door rear right
D11 Blue-yellow window switch signal
input
04
Driver door front right
D12 Orange - black window switch signal
input
Driver door front left
D13 White - green window switch signal
input
D14 Orange Light relay control

Low beam relay
D15 Purple -red
control
Front fog lamp relay
D16 White - violet
control

D17 Orange - violet Anti-theft indicator
D18 Red Horn relay control

D19 Red-white CAN H
D20 Blue-yellow CAN L

Rear window defrost
D21 Red
relay control
D22 – –

Front wiper low relay
D23 green
control

Front wiper high relay
D24 Yellow - red
control
D25 — —

D26 — —
D27 Black-yellow signal input

Headlamp dimmer
D28 Yellowwhite
switch
D29 — —

D30 Yellow-red Sun sensor signal

Reverse radar LIN
D31 Green-black
line
D32 Purple - pink LIN

Connector E
