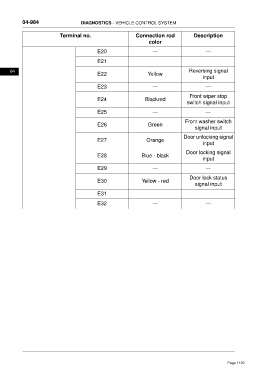

04-984 DIAGNOSTICS - VEHICLE CONTROL SYSTEM

Terminal no. Connection rod Description
color

E20 — —

E21 — —

04 Reversing signal
E22 Yellow
input
E23 — —

Front wiper stop
E24 Blackred
switch signal input
E25 — —

Front washer switch
E26 Green
signal input
Door unlocking signal
E27 Orange
input
Door locking signal
E28 Blue - black
input

E29 — —

Door lock status
E30 Yellow - red
signal input
E31 — —

E32 — —
