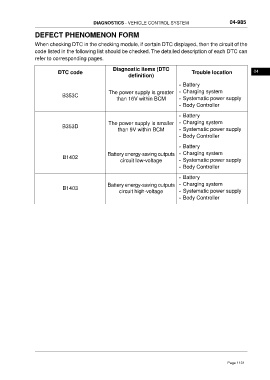

DIAGNOSTICS - VEHICLE CONTROL SYSTEM 04-985
DEFECT PHENOMENON FORM
When checking DTC in the checking module, if certain DTC displayed, then the circuit of the
code listed in the following list should be checked.The detailed description of each DTC can
refer to corresponding pages.
Diagnostic items (DTC
DTC code Trouble location 04
definition)
• Battery
The power supply is greater • Charging system
B353C
than 16V within BCM • Systematic power supply
• Body Controller
• Battery
The power supply is smaller • Charging system
B353D
than 9V within BCM • Systematic power supply
• Body Controller
• Battery
Battery energy-saving outputs • Charging system
B1402
circuit low-voltage • Systematic power supply
• Body Controller
• Battery
Battery energy-saving outputs • Charging system
B1403
circuit high-voltage • Systematic power supply
• Body Controller
