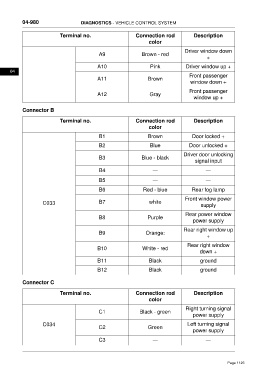

Page 1126 - Foton Workshop Manual - Tunland (AT)
P. 1126
04-980 DIAGNOSTICS - VEHICLE CONTROL SYSTEM
Terminal no. Connection rod Description
color
Driver window down
A9 Brown - red
+
A10 Pink Driver window up +
04
Front passenger
A11 Brown
window down +
Front passenger
A12 Gray
window up +
Connector B
Terminal no. Connection rod Description
color
B1 Brown Door locked +
B2 Blue Door unlocked +
Driver door unlocking
B3 Blue - black
signal input
B4 — —
B5 — —
B6 Red - blue Rear fog lamp
Front window power
C033 B7 white
supply
Rear power window
B8 Purple
power supply
Rear right window up
B9 Orange:
+
Rear right window
B10 White - red
down +
B11 Black ground
B12 Black ground
Connector C
Terminal no. Connection rod Description
color
Right turning signal
C1 Black - green
power supply
C034 Left turning signal
C2 Green
power supply
C3 — —
Page 1126
