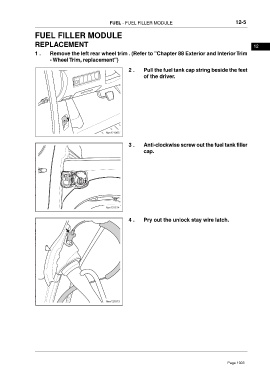

FUEL - FUEL FILLER MODULE                                12-5

                 FUEL FILLER MODULE

                 REPLACEMENT                                                                                         12
                 1 .    Remove the left rear wheel trim . (Refer to "Chapter 88 Exterior and Interior Trim
                        - Wheel Trim, replacement")

                                                           2 .    Pull the fuel tank cap string beside the feet
                                                                  of the driver.














                                                 ftwx121065

                                                           3 .    Anti-clockwise screw out the fuel tank filler
                                                                  cap.


















                                                           4 .    Pry out the unlock stay wire latch.
