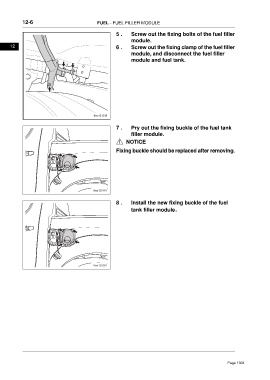

12-6                              FUEL - FUEL FILLER MODULE

                                                      5 .    Screw out the fixing bolts of the fuel filler
                                                             module.
      12                                              6 .    Screw out the fixing clamp of the fuel filler
                                                             module, and disconnect the fuel filler
                                                             module and fuel tank.


















                                                      7 .    Pry out the fixing buckle of the fuel tank
                                                             filler module.

                                                           NOTICE
                                                      Fixing buckle should be replaced after removing.









                                           ftwx121061


                                                      8 .    Install the new fixing buckle of the fuel
                                                             tank filler module。














                                           ftwx121061
