P. 1307

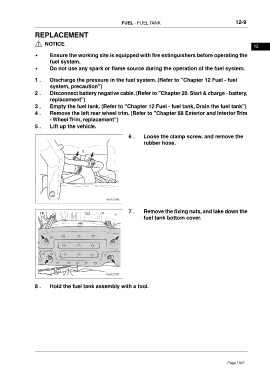

FUEL - FUEL TANK                                    12-9

                 REPLACEMENT

                      NOTICE
                                                                                                                     12
                 •      Ensure the working site is equipped with fire extinguishers before operating the
                        fuel system.
                 •      Do not use any spark or flame source during the operation of the fuel system.

                 1 .    Discharge the pressure in the fuel system. (Refer to "Chapter 12 Fuel - fuel
                        system, precaution")
                 2 .    Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                        replacement")
                 3 .    Empty the fuel tank. (Refer to "Chapter 12 Fuel - fuel tank, Drain the fuel tank")
                 4 .    Remove the left rear wheel trim. (Refer to "Chapter 88 Exterior and Interior Trim
                        - Wheel Trim, replacement")
                 5 .    Lift up the vehicle.

                                                           6 .    Loose the clamp screw, and remove the
                                                                  rubber hose.

















                                                           7 .    Remove the fixing nuts, and take down the
                                                                  fuel tank bottom cover.

















                 8 .    Hold the fuel tank assembly with a tool.
