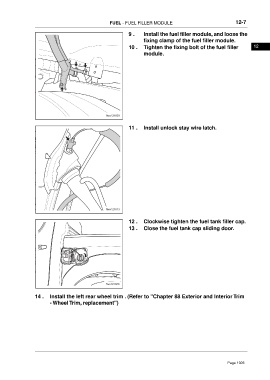

FUEL - FUEL FILLER MODULE                                12-7

                                                           9 .    Install the fuel filler module, and loose the
                                                                  fixing clamp of the fuel filler module.
                                                           10 .   Tighten the fixing bolt of the fuel filler         12
                                                                  module.



















                                                           11 .   Install unlock stay wire latch.
























                                                           12 .   Clockwise tighten the fuel tank filler cap.
                                                           13 .   Close the fuel tank cap sliding door.

















                 14 .   Install the left rear wheel trim . (Refer to "Chapter 88 Exterior and Interior Trim
                        - Wheel Trim, replacement")
