Page 1506 - Foton Workshop Manual - Tunland (AT)
P. 1506

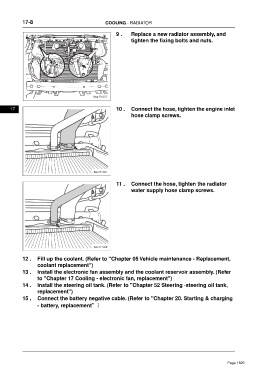

17-8 COOLING - RADIATOR
9 . Replace a new radiator assembly, and
tighten the fixing bolts and nuts.
ftwx171037
17 10 . Connect the hose, tighten the engine inlet
hose clamp screws.
11 . Connect the hose, tighten the radiator
water supply hose clamp screws.
12 . Fill up the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
13 . Install the electronic fan assembly and the coolant reservoir assembly. (Refer
to "Chapter 17 Cooling - electronic fan, replacement")
14 . Install the steering oil tank. (Refer to "Chapter 52 Steering -steering oil tank,
replacement")
15 . Connect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
Page 1506
