P. 1507

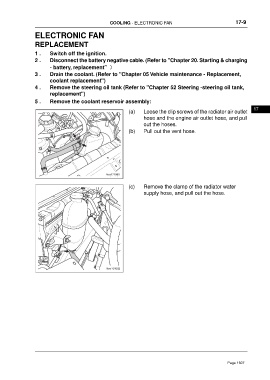

COOLING - ELECTRONIC FAN 17-9
ELECTRONIC FAN
REPLACEMENT
1 . Switch off the ignition.
2 . Disconnect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
3 . Drain the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
4 . Remove the steering oil tank (Refer to "Chapter 52 Steering -steering oil tank,
replacement")
5 . Remove the coolant reservoir assembly:
17
(a) Loose the clip screws of the radiator air outlet
hose and the engine air outlet hose, and pull
out the hoses.
(b) Pull out the vent hose.
(c) Remove the clamp of the radiator water
supply hose, and pull out the hose.
