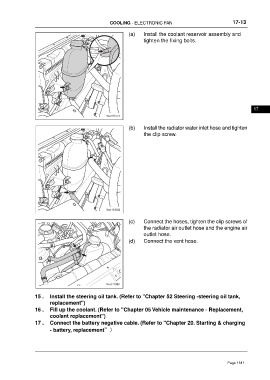

Page 1511 - Foton Workshop Manual - Tunland (AT)
P. 1511
COOLING - ELECTRONIC FAN 17-13
(a) Install the coolant reservoir assembly and
tighten the fixing bolts.
17
(b) Install the radiator water inlet hose and tighten
the clip screw.
(c) Connect the hoses, tighten the clip screws of
the radiator air outlet hose and the engine air
outlet hose.
(d) Connect the vent hose.
15 . Install the steering oil tank. (Refer to "Chapter 52 Steering -steering oil tank,
replacement")
16 . Fill up the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
17 . Connect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
Page 1511
