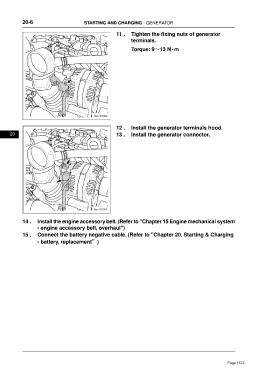

20-6                        STARTING AND CHARGING - GENERATOR

                                                      11 .   Tighten the fixing nuts of generator
                                                             terminals.
                                                             Torque: 9～13 N•m





















                                                      12 .   Install the generator terminals hood.
      20                                              13 .   Install the generator connector.























           14 .   Install the engine accessory belt. (Refer to "Chapter 15 Engine mechanical system
                  - engine accessory belt, overhaul")
           15 .   Connect the battery negative cable. (Refer to "Chapter 20. Starting & Charging
                  - battery, replacement”)
