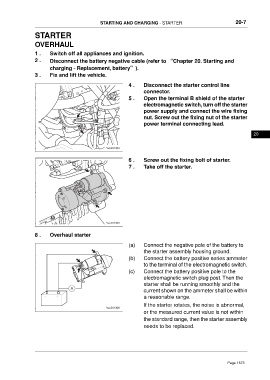

STARTING AND CHARGING - STARTER 20-7

STARTER

OVERHAUL
1 . Switch off all appliances and ignition.
2 . Disconnect the battery negative cable (refer to “Chapter 20. Starting and

charging - Replacement, battery”).
3 . Fix and lift the vehicle.

4 . Disconnect the starter control line
connector.
5 . Open the terminal B shield of the starter
electromagnetic switch, turn off the starter
power supply and connect the wire fixing
nut. Screw out the fixing nut of the starter
power terminal connecting lead.

20

6 . Screw out the fixing bolt of starter.
7 . Take off the starter.

8 . Overhaul starter

(a) Connect the negative pole of the battery to
the starter assembly housing ground.
(b) Connect the battery positive series ammeter
to the terminal of the electromagnetic switch.
(c) Connect the battery positive pole to the
electromagnetic switch plug post. Then the
starter shall be running smoothly and the
current shown on the ammeter shall be within
a reasonable range.

If the starter rotates, the noise is abnormal,
or the measured current value is not within
the standard range, then the starter assembly
needs to be replaced.
