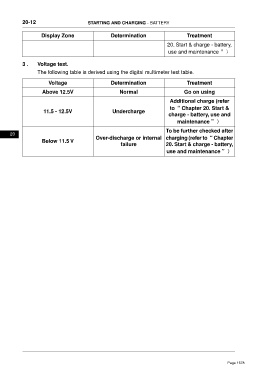

20-12 STARTING AND CHARGING - BATTERY
Display Zone Determination Treatment
20. Start & charge - battery,
use and maintenance ”）
3 . Voltage test.
The following table is derived using the digital multimeter test table.
Voltage Determination Treatment
Above 12.5V Normal Go on using
Additional charge (refer
to“ Chapter 20. Start &
11.5 - 12.5V Undercharge
charge - battery, use and
maintenance ”）
To be further checked after
20
Over-discharge or internal charging (refer to“ Chapter
Below 11.5 V
failure 20. Start & charge - battery,
use and maintenance ”）
