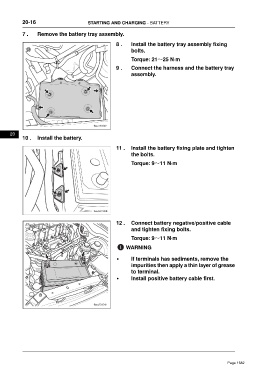

20-16 STARTING AND CHARGING - BATTERY

7 . Remove the battery tray assembly.

8 . Install the battery tray assembly fixing
bolts.
Torque: 21～25 N·m

9 . Connect the harness and the battery tray
assembly.

20
10 . Install the battery.

11 . Install the battery fixing plate and tighten
the bolts.

Torque: 9～11 N·m

12 . Connect battery negative/positive cable
and tighten fixing bolts.

Torque: 9～11 N·m
WARNING

• If terminals has sediments, remove the
impurities then apply a thin layer of grease
to terminal.
• Install positive battery cable first.
