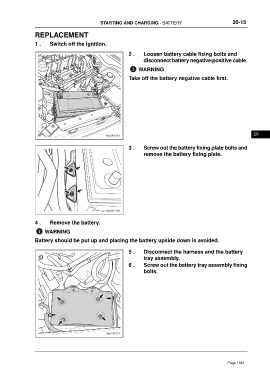

STARTING AND CHARGING - BATTERY 20-15
REPLACEMENT
1 . Switch off the ignition.
2 . Loosen battery cable fixing bolts and
disconnect battery negative/positive cable.
WARNING
Take off the battery negative cable first.
20
3 . Screw out the battery fixing plate bolts and
remove the battery fixing plate.
4 . Remove the battery.
WARNING
Battery should be put up and placing the battery upside down is avoided.
5 . Disconnect the harness and the battery
tray assembly.
6 . Screw out the battery tray assembly fixing
bolts.
