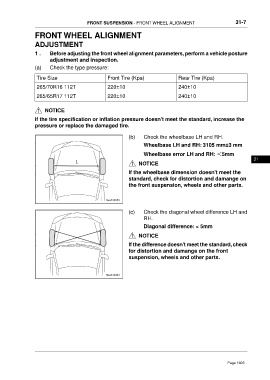

FRONT SUSPENSION - FRONT WHEEL ALIGNMENT 31-7

FRONT WHEEL ALIGNMENT

ADJUSTMENT
1 . Before adjusting the front wheel alignment parameters, perform a vehicle posture
adjustment and inspection.
(a) Check the type pressure:

Tire Size Front Tire (Kpa) Rear Tire (Kpa)
265/70R16 112T 220±10 240±10

265/65R17 112T 220±10 240±10

NOTICE
If the tire specification or inflation pressure doesn't meet the standard, increase the
pressure or replace the damaged tire.

(b) Check the wheelbase LH and RH.
Wheelbase LH and RH: 3105 mm±3 mm

Wheelbase error LH and RH: ＜5mm
31
NOTICE
If the wheelbase dimension doesn't meet the
standard, check for distortion and damange on
the front suspension, wheels and other parts.

(c) Check the diagonal wheel difference LH and
RH.
Diagonal difference: < 5mm

NOTICE
If the difference doesn't meet the standard, check
for distortion and damange on the front
suspension, wheels and other parts.
