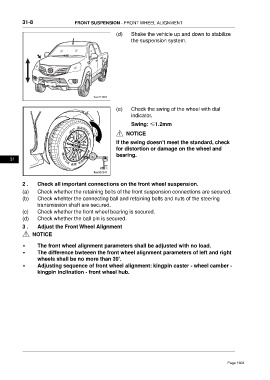

31-8 FRONT SUSPENSION - FRONT WHEEL ALIGNMENT

(d) Shake the vehicle up and down to stabilize
the suspension system.

(e) Check the swing of the wheel with dial
indicator.
Swing: ≤1.2mm

NOTICE

If the swing doesn't meet the standard, check
for distortion or damage on the wheel and
bearing.
31

2 . Check all important connections on the front wheel suspension.

(a) Check whether the retaining bolts of the front suspension connections are secured.
(b) Check whehter the connecting ball and retaining bolts and nuts of the steering
transmission shaft are secured.
(c) Check whether the front wheel bearing is secured.
(d) Check whether the ball pin is secured.

3 . Adjust the Front Wheel Alignment
NOTICE

• The front wheel alignment parameters shall be adjusted with no load.
• The difference bwteeen the front wheel alignment parameters of left and right
wheels shall be no more than 30'.
• Adjusting sequence of front wheel alignment: kingpin caster - wheel camber -
kingpin inclination - front wheel hub.
