P. 1608

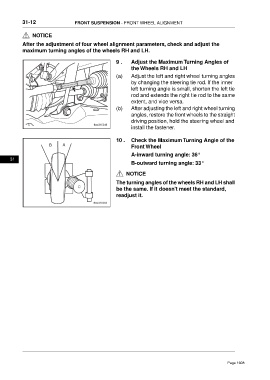

31-12 FRONT SUSPENSION - FRONT WHEEL ALIGNMENT
NOTICE
After the adjustment of four wheel alignment parameters, check and adjust the
maximum turning angles of the wheels RH and LH.
9 . Adjust the Maximum Turning Angles of
the Wheels RH and LH
(a) Adjust the left and right wheel turning angles
by changing the steering tie rod. If the inner
left turning angle is small, shorten the left tie
rod and extends the right tie rod to the same
extent, and vice versa.
(b) After adjusting the left and right wheel turning
angles, restore the front wheels to the straight
driving position, hold the steering wheel and
install the fastener.
10 . Check the Maximum Turning Angle of the
Front Wheel
A-inward turning angle: 36°
31
B-outward turning angle: 33°
NOTICE
The turning angles of the wheels RH and LH shall
be the same. If it doesn't meet the standard,
readjust it.
