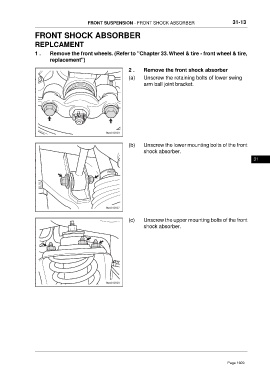

FRONT SUSPENSION - FRONT SHOCK ABSORBER                           31-13

                 FRONT SHOCK ABSORBER

                 REPLCAMENT
                 1 .    Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
                        replacement")

                                                           2 .    Remove the front shock absorber
                                                           (a)    Unscrew the retaining bolts of lower swing
                                                                  arm ball joint bracket.















                                                           (b)    Unscrew the lower mounting bolts of the front
                                                                  shock absorber.
                                                                                                                     31
















                                                           (c)    Unscrew the upper mounting bolts of the front
                                                                  shock absorber.
