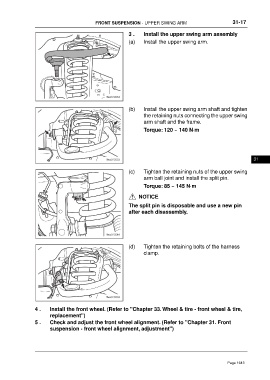

FRONT SUSPENSION - UPPER SWING ARM 31-17

3 . Install the upper swing arm assembly
(a) Install the upper swing arm.

(b) Install the upper swing arm shaft and tighten
the retaining nuts connecting the upper swing
arm shaft and the frame.
Torque: 120 ~ 140 N·m

31

(c) Tighten the retaining nuts of the upper swing
arm ball joint and install the split pin.
Torque: 85 ~ 145 N·m

NOTICE

The split pin is disposable and use a new pin
after each disassembly.

(d) Tighten the retaining bolts of the harness
clamp.

4 . Install the front wheel. (Refer to "Chapter 33. Wheel & tire - front wheel & tire,
replacement")
5 . Check and adjust the front wheel alignment. (Refer to "Chapter 31. Front
suspension - front wheel alignment, adjustment")
