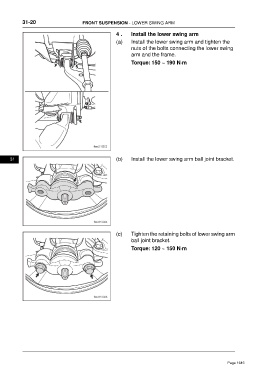

31-20 FRONT SUSPENSION - LOWER SWING ARM
4 . Install the lower swing arm
(a) Install the lower swing arm and tighten the
nuts of the bolts connecting the lower swing
arm and the frame.
Torque: 150 ~ 190 N·m
31 (b) Install the lower swing arm ball joint bracket.
(c) Tighten the retaining bolts of lower swing arm
ball joint bracket.
Torque: 120 ~ 150 N·m
