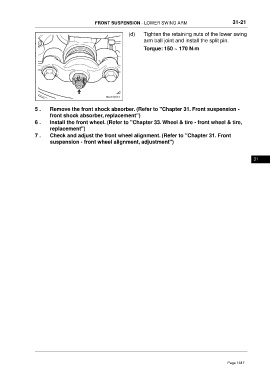

FRONT SUSPENSION - LOWER SWING ARM 31-21

(d) Tighten the retaining nuts of the lower swing
arm ball joint and install the split pin.
Torque: 150 ~ 170 N·m

5 . Remove the front shock absorber. (Refer to "Chapter 31. Front suspension -
front shock absorber, replacement")
6 . Install the front wheel. (Refer to "Chapter 33. Wheel & tire - front wheel & tire,
replacement")
7 . Check and adjust the front wheel alignment. (Refer to "Chapter 31. Front
suspension - front wheel alignment, adjustment")

31
