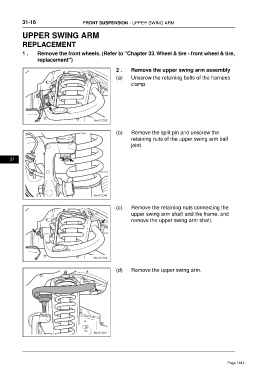

31-16 FRONT SUSPENSION - UPPER SWING ARM

UPPER SWING ARM

REPLACEMENT
1 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")

2 . Remove the upper swing arm assembly
(a) Unscrew the retaining bolts of the harness
clamp.

(b) Remove the split pin and unscrew the
retaining nuts of the upper swing arm ball
joint.

31

(c) Remove the retaining nuts connecting the
upper swing arm shaft and the frame, and
remove the upper swing arm shaft.

(d) Remove the upper swing arm.
