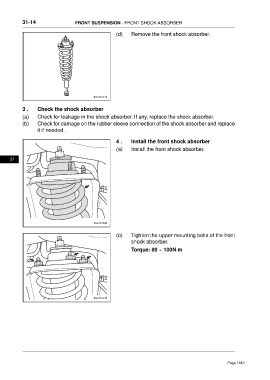

31-14 FRONT SUSPENSION - FRONT SHOCK ABSORBER

(d) Remove the front shock absorber.

3 . Check the shock absorber
(a) Check for leakage in the shock absorber. If any, replace the shock absorber.
(b) Check for damage on the rubber sleeve connection of the shock absorber and replace
it if needed.

4 . Install the front shock absorber

(a) Install the front shock absorber.
31

(b) Tighten the upper mounting bolts of the front
shock absorber.
Torque: 80 ~ 100N·m
