P. 1753

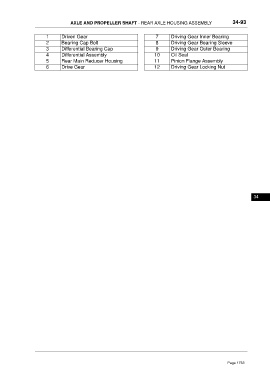

AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY 34-93
1 Driven Gear 7 Driving Gear Inner Bearing
2 Bearing Cap Bolt 8 Driving Gear Bearing Sleeve
3 Differential Bearing Cap 9 Driving Gear Outer Bearing
4 Differential Assembly 10 Oil Seal
5 Rear Main Reducer Housing 11 Pinion Flange Assembly
6 Drive Gear 12 Driving Gear Locking Nut
34
