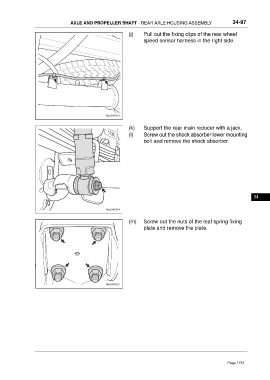

AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY 34-97
(j) Pull out the fixing clips of the rear wheel
speed sensor harness in the right side.
(k) Support the rear main reducer with a jack.
(l) Screw out the shock absorber lower mounting
bolt and remove the shock absorber.
34
(m) Screw out the nuts of the leaf spring fixing
plate and remove the plate.
