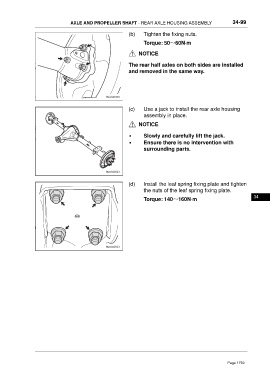

AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY 34-99
(b) Tighten the fixing nuts.
Torque: 50～60N·m
NOTICE
The rear half axles on both sides are installed
and removed in the same way.
(c) Use a jack to install the rear axle housing
assembly in place.
NOTICE
• Slowly and carefully lift the jack.
• Ensure there is no intervention with
surrounding parts.
(d) Install the leaf spring fixing plate and tighten
the nuts of the leaf spring fixing plate.
34
Torque: 140～160N·m
