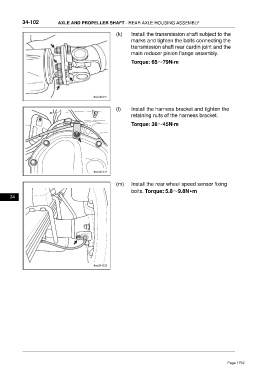

34-102 AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY

(k) Install the transmission shaft subject to the
marks and tighten the bolts connecting the
transmission shaft rear cardin joint and the
main reducer pinion flange assembly.

Torque: 65～79N·m

(l) Install the harness bracket and tighten the
retaining nuts of the harness bracket.
Torque: 38～45N·m

(m) Install the rear wheel speed sensor fixing
bolts. Torque: 5.8～9.8N•m
