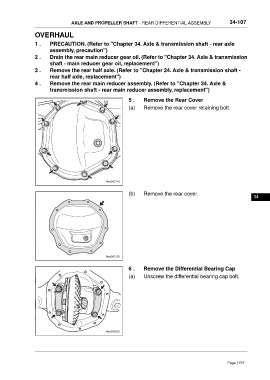

AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY 34-107
OVERHAUL
1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - rear axle
assembly, precaution")
2 . Drain the rear main reducer gear oil. (Refer to "Chapter 34. Axle & transmission
shaft - main reducer gear oil, replacement")
3 . Remove the rear half axle. (Refer to "Chapter 34. Axle & transmission shaft -
rear half axle, replacement")
4 . Remove the rear main reducer assembly. (Refer to "Chapter 34. Axle &
transmission shaft - rear main reducer assembly, replacement")
5 . Remove the Rear Cover
(a) Remove the rear cover retaining bolt.
(b) Remove the rear cover.
34
6 . Remove the Differential Bearing Cap
(a) Unscrew the differential bearing cap bolt.
